Expert Circuit Board Repair Techniques And Solutions

The world of electronics is a complex and fascinating one, where tiny components and intricate circuits come together to power everything from smartphones to spacecraft. At the heart of these devices lies the circuit board, a delicate and intricate landscape of wires, resistors, and microchips. But what happens when these boards fail or become damaged? That's where expert circuit board repair techniques come in – a specialized field that requires precision, patience, and a deep understanding of electronics.

In this article, we'll delve into the world of circuit board repair, exploring the techniques, tools, and solutions used by experts to breathe new life into faulty boards. Whether you're a seasoned electronics enthusiast or just starting out, this comprehensive guide will provide you with a deeper understanding of the complex and fascinating world of circuit board repair.

Understanding Circuit Board Failure

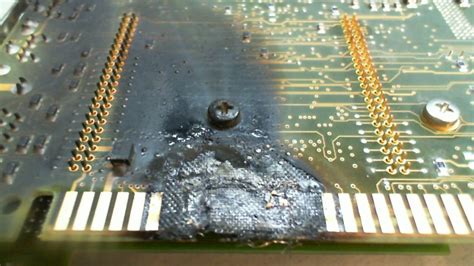

Before we dive into the repair techniques, it's essential to understand why circuit boards fail in the first place. There are many reasons, including physical damage, overheating, power surges, and manufacturing defects. In many cases, the failure is caused by a combination of these factors, making diagnosis and repair even more challenging.

To diagnose a faulty circuit board, experts use a range of techniques, including visual inspection, signal tracing, and logic analysis. By identifying the root cause of the failure, repair technicians can develop an effective strategy to fix the board and get it working again.

Basic Circuit Board Repair Techniques

While circuit board repair can be a complex and nuanced field, there are several basic techniques that are used in many repairs. These include:

Soldering and desoldering: The process of joining or separating components using solder, a fusible metal alloy.
Component replacement: Replacing faulty or damaged components with new ones.
Wire repair: Repairing or replacing damaged wires and connections.
Cleaning and inspection: Cleaning the board to remove dirt and debris, and inspecting it to identify faults.

These basic techniques form the foundation of circuit board repair, and are used in conjunction with more advanced techniques to fix complex faults.

Advanced Circuit Board Repair Techniques

In addition to basic techniques, there are several advanced methods used in circuit board repair. These include:

BGA rework: Repairing or replacing ball grid array (BGA) components, which require specialized equipment and techniques.
Micro-soldering: Soldering tiny components and connections using high-magnification microscopes and specialized tools.
Laser repair: Using laser technology to repair or remove components, such as chip resistors and capacitors.
X-ray inspection: Using X-ray technology to inspect the board and identify faults that are not visible to the naked eye.

These advanced techniques require specialized training and equipment, and are typically used in high-end electronics repair facilities.

Circuit Board Repair Tools and Equipment

To perform circuit board repair, technicians use a range of specialized tools and equipment. These include:

Soldering stations: High-precision soldering irons and stations that provide precise temperature control and other features.
Microscopes: High-magnification microscopes that allow technicians to inspect and repair tiny components and connections.
Logic analyzers: Specialized tools that analyze digital signals and help technicians diagnose faults.
X-ray inspection equipment: Machines that use X-ray technology to inspect the board and identify faults.

These tools and equipment are essential for circuit board repair, and are used in conjunction with advanced techniques to fix complex faults.

Circuit Board Repair Solutions

In addition to techniques and tools, there are several circuit board repair solutions that can help fix faulty boards. These include:

Circuit board repair kits: Pre-assembled kits that contain the necessary components and tools to fix common faults.
Circuit board repair software: Specialized software that helps technicians diagnose and repair faults, and provides access to repair guides and other resources.
Circuit board repair services: Professional repair services that offer fast and reliable repair of faulty circuit boards.

These solutions can help technicians and electronics enthusiasts fix faulty circuit boards quickly and efficiently, and get their devices up and running again.

Conclusion

Circuit board repair is a complex and nuanced field that requires precision, patience, and a deep understanding of electronics. By understanding the techniques, tools, and solutions used in circuit board repair, technicians and electronics enthusiasts can fix faulty boards and get their devices working again. Whether you're a seasoned expert or just starting out, this comprehensive guide has provided you with a deeper understanding of the fascinating world of circuit board repair.

We invite you to share your thoughts and experiences with circuit board repair in the comments below. Have you ever attempted to repair a faulty circuit board? What techniques and tools did you use? Share your story and help others learn from your experiences.

What is circuit board repair?

Circuit board repair is the process of fixing faulty or damaged circuit boards, which are the backbone of modern electronics.

What are the most common causes of circuit board failure?

The most common causes of circuit board failure include physical damage, overheating, power surges, and manufacturing defects.

What are the basic techniques used in circuit board repair?

The basic techniques used in circuit board repair include soldering and desoldering, component replacement, wire repair, and cleaning and inspection.
