Ethernet cables have become an essential component in modern networking, connecting devices to local area networks (LANs), wide area networks (WANs), and the internet. One crucial aspect of working with Ethernet cables is understanding the color code used to identify the different wires within the cable. This guide will delve into the world of Ethernet cable color codes, providing a comprehensive overview to help you navigate the complexities of networking.
Why Are Ethernet Cable Color Codes Important?
Ethernet cable color codes are vital for ensuring that your network is installed correctly and functions as intended. The color code helps identify the different wires within the cable, making it easier to connect devices and troubleshoot issues. Without a standardized color code, networking would be a chaotic and time-consuming process.
What Is the Ethernet Cable Color Code Standard?
The Ethernet cable color code standard is defined by the Telecommunications Industry Association (TIA) and the International Organization for Standardization (ISO). The standard specifies that Ethernet cables should use a specific color code to identify the different wires within the cable. The most commonly used color code is the TIA/EIA-568 standard.
The TIA/EIA-568 Color Code Standard

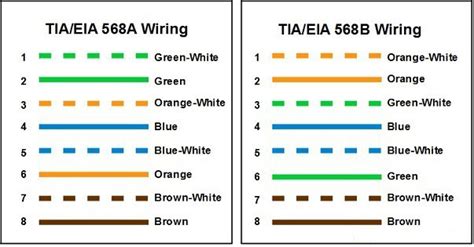

The TIA/EIA-568 color code standard is the most widely used standard for Ethernet cables. The standard defines two wiring schemes: TIA/EIA-568-A and TIA/EIA-568-B.
TIA/EIA-568-A Wiring Scheme
The TIA/EIA-568-A wiring scheme is the most commonly used wiring scheme for Ethernet cables. The color code for the TIA/EIA-568-A wiring scheme is as follows:
- White/Green (Wire 1)
- Green (Wire 2)
- White/Orange (Wire 3)
- Blue (Wire 4)
- White/Blue (Wire 5)
- Orange (Wire 6)
- White/Brown (Wire 7)
- Brown (Wire 8)
TIA/EIA-568-B Wiring Scheme
The TIA/EIA-568-B wiring scheme is an alternative to the TIA/EIA-568-A wiring scheme. The color code for the TIA/EIA-568-B wiring scheme is as follows:
- White/Orange (Wire 1)
- Orange (Wire 2)
- White/Green (Wire 3)
- Blue (Wire 4)
- White/Blue (Wire 5)
- Green (Wire 6)
- White/Brown (Wire 7)
- Brown (Wire 8)
Other Ethernet Cable Color Codes
While the TIA/EIA-568 color code standard is the most widely used, there are other Ethernet cable color codes used in specific applications.
10GBase-T Color Code
The 10GBase-T color code is used for 10-Gigabit Ethernet cables. The color code for 10GBase-T is as follows:
- White/Green (Wire 1)
- Green (Wire 2)
- White/Orange (Wire 3)
- Blue (Wire 4)
- White/Blue (Wire 5)
- Orange (Wire 6)
- White/Brown (Wire 7)
- Brown (Wire 8)
- White/Yellow (Wire 9)
- Yellow (Wire 10)
POE (Power over Ethernet) Color Code
The POE color code is used for Power over Ethernet cables. The color code for POE is as follows:
- White/Green (Wire 1)
- Green (Wire 2)
- White/Orange (Wire 3)
- Blue (Wire 4)
- White/Blue (Wire 5)
- Orange (Wire 6)
- White/Brown (Wire 7)
- Brown (Wire 8)
- White/Yellow (Wire 9)
- Yellow (Wire 10)

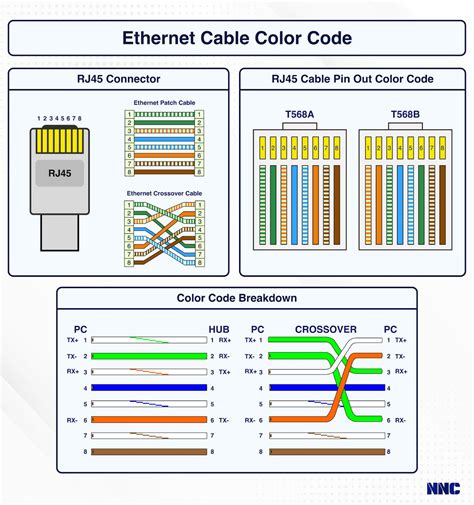

Best Practices for Working with Ethernet Cable Color Codes
When working with Ethernet cable color codes, it's essential to follow best practices to ensure that your network is installed correctly and functions as intended.
Use the Correct Wiring Scheme
When installing Ethernet cables, it's essential to use the correct wiring scheme. The TIA/EIA-568-A wiring scheme is the most commonly used, but it's crucial to verify the wiring scheme used in your network.
Verify the Color Code
Before connecting devices, verify the color code to ensure that the wires are correctly identified.
Use a Cable Tester
Use a cable tester to verify that the Ethernet cable is functioning correctly and that the color code is correct.
Conclusion
In conclusion, understanding Ethernet cable color codes is crucial for ensuring that your network is installed correctly and functions as intended. By following the TIA/EIA-568 color code standard and best practices, you can ensure that your network is reliable and efficient.
We hope this guide has provided you with a comprehensive understanding of Ethernet cable color codes. If you have any questions or comments, please feel free to share them below.
What is the most commonly used Ethernet cable color code standard?
+The most commonly used Ethernet cable color code standard is the TIA/EIA-568 standard.
What is the difference between TIA/EIA-568-A and TIA/EIA-568-B wiring schemes?
+The main difference between TIA/EIA-568-A and TIA/EIA-568-B wiring schemes is the color code used to identify the wires within the cable.
What is the best practice for working with Ethernet cable color codes?
+The best practice for working with Ethernet cable color codes is to use the correct wiring scheme, verify the color code, and use a cable tester to ensure that the Ethernet cable is functioning correctly.
